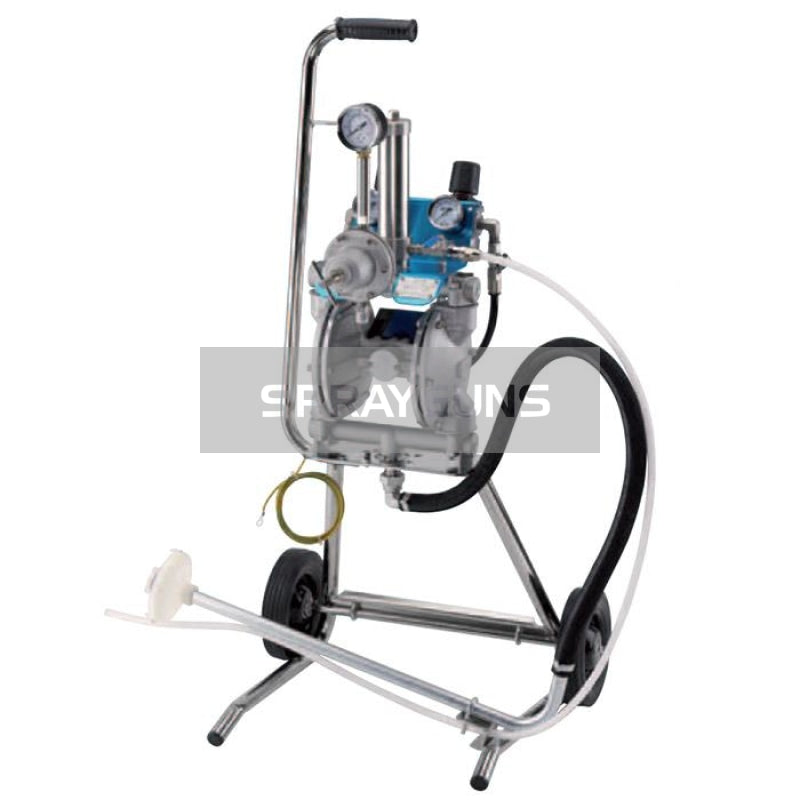

Anest Iwata DPS 903 Cart Mounted Double Diaphragm Pump
Downloads
Pump Specs:
• Aluminium and alloy construction
• Simple and reliable operation
• 1.5 Bar / 23PSI minimum working pressure
• 6.8 Bar / 98PSI maximum working pressure
• 10 LPM maximum delivery
• 50cc per cycle
• Max 200 cycles per minute
• Weight 4Kg (Pump Only)
• CE certified
• Air pressure circuit conforms to safety standard PREN12621
• PR5 fluid regulator included to ensure smooth constant delivery
This ANEST-IWATA diaphragm paint pump complies to ATEX regulations 94/9/EC. Protection level: II 2 GX Suitable for use in Zones 1 and 2.
We have super reliable super smooth delivery double diaphragm pumps. Ideal for high volume painting demands such as furniture / retail solutions manufacturing, commercial transport and industrial finishing or where ever a large surface area needs coating to a high standard quick time. They are great for basic fluid transfers with a wide range of liquid products. All of our double diaphragm pumps are supplied ready to use complete with pressure gauge, air regulator, fluid delivery regulator, we can also supply complete with both air and fluid lines ranging from 5m to 20m and a choice of pressure fed spray guns.
