Metal Work Pneumatic
Metal Work Pneumatic air management equipment.
Metal Work 1/2" Breathing Air Set (Breathe 3 Stage) New Deal model
1/2" entry and exit ports
20µm pre filter regulator included
Max Working Pressure: 232psi 16Bar
Max Recommended Working Temp: 25ºc
Convenient modular robust design
The full range is available in many combinations, get in touch for help or advice .
This unit will NOT remove carbon monoxide (CO) & carbon dioxide (CO2).
Breathe provides high quality clean air essential for paint spraying and breathing air applications to a standard higher than specified in BS4275:1974.
Metal Work 1/2" Breathing Air Set (Breathe 3 Stage) New Deal model
1/2" entry and exit ports
20µm pre filter included
Max Working Pressure: 232psi 16Bar
Max Recommended Working Temp: 25ºc
Convenient modular robust design
The full range is available in many combinations, get in touch for help or advice .
This unit will NOT remove carbon monoxide (CO) & carbon dioxide (CO2).
Breathe provides high quality clean air essential for paint spraying and breathing air applications to a standard higher than specified in BS4275:1974.
Metalwork Syntesi 20µm air filterilter
1/4" or 1/2" entry and exit ports
Semi Auto Drain
Max Working Pressure: 188psi 13Bar
Max Working Temp: 50ºc @ 13Bar
Flow Capacity 1/4": 1650lpm @ 6.3Bar & 1Bar reduction
Flow Capacity 1/2": 5200lpm @ 6.3Bar & 1Bar reduction
Degree Of Filtration: 20 micron
Convenient modular robust design
Convenient intelligent modular connecting system
The full range is available in many combinations, get in touch for help or advice.
1/4" or 1/2" entry and exit ports
Semi Auto Drain
Max Working Pressure: 188psi 13Bar
Max Working Temp: 50ºc @ 13Bar
Flow Capacity 1/4": 1650lpm @ 6.3Bar & 1Bar reduction
Flow Capacity 1/2": 5200lpm @ 6.3Bar & 1Bar reduction
Degree Of Filtration: 20 micron
Convenient modular robust design
Convenient intelligent modular connecting system
The full range is available in many combinations, get in touch for help or advice.
Metal Work 1/2" Breathing Air Set (Breathe 2 Stage) New Deal model
1/2" entry and exit ports
Max Working Pressure: 232psi 16Bar
Max Recommended Working Temp: 25ºc
Convenient modular robust design
The full range is available in many combinations, get in touch for help or advice .
This unit will NOT remove carbon monoxide (CO) & carbon dioxide (CO2).
Breathe provides high quality clean air essential for paint spraying and breathing air applications to a standard higher than specified in BS4275:1974.
Metalwork Syntesi 20µm Filter Regulator
1/4" or 1/2" entry and exit ports
Semi Auto Drain
Available bare or with guage
Max Working Pressure: 188psi 13Bar
Regulation Range: 0-174 psi 0-12Bar
Max Working Temp: 50ºc @ 13Bar
Flow Capacity 1/4": 2000lpm @ 6.3Bar & 1Bar reduction
Flow Capacity 1/2": 7200lpm @ 6.3Bar & 1Bar reduction
Degree Of Filtration: 20 micron
Convenient intelligent modular connecting system
The full range is available in many combinations, get in touch for help or advice.
Gauge not included and must be ordered separately.
1/4" or 1/2" entry and exit ports
Semi Auto Drain
Available bare or with guage
Max Working Pressure: 188psi 13Bar
Regulation Range: 0-174 psi 0-12Bar
Max Working Temp: 50ºc @ 13Bar
Flow Capacity 1/4": 2000lpm @ 6.3Bar & 1Bar reduction
Flow Capacity 1/2": 7200lpm @ 6.3Bar & 1Bar reduction
Degree Of Filtration: 20 micron
Convenient intelligent modular connecting system
The full range is available in many combinations, get in touch for help or advice.
Gauge not included and must be ordered separately.
Portable and Secure
Metal Work 1/2" Breathing Air Set (Breathe 3 Stage)
New Deal model, includes regulator for pressure control
1/2" entry and exit ports
20µm pre filter regulator included
Max Working Pressure: 232psi 16Bar
Max Recommended Working Temp: 25ºc
Convenient modular robust design
The full range is available in many combinations, get in touch for help or advice .
This unit will NOT remove carbon monoxide (CO) & carbon dioxide (CO2).
Breathe provides high quality clean air essential for paint spraying and breathing air applications to a standard higher than specified in BS4275:1974.
Manufactured to order, up to 10 working days lead time.

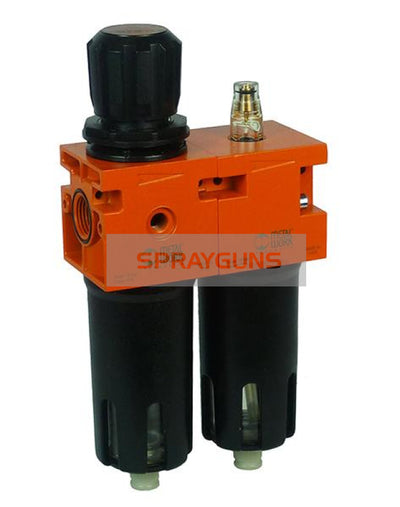

Metal Work New Deal 20µm Filter Regulator With Lubricator
New Deal model
Metal Work New Deal 20µm Filter Regulator With Lubricator
New Deal model
1/4" or 1/2" entry and exit ports
Semi Auto Drain
Available bare or with guage
Max Working Pressure: 261psi 18Bar
Regulation Range: 0-174 psi 0-12Bar
Max Working Temp: 50ºc @ 10Bar
Flow Capacity 1/4": 500lpm 18cfm @ 6.3Bar & 1Bar reduction
Flow Capacity 1/2": 2200lpm 78cfm @ 6.3Bar & 1Bar reduction
Degree Of Filtration: 20 micron
Convenient modular robust design
Aluminium bowl
Pound for pound probably the best value air management equipment available
Buy the right kit first time and you will only buy once
The full range is available in many combinations, get in touch for help or advice
Metalwork Syntesi Regulator
1/4" or 1/2" entry and exit ports
Max Working Pressure: 188psi 13Bar
Regulation Range: 0-174 psi 0-12Bar
Max Working Temp: 50ºc @ 13Bar
Flow Capacity 1/4": 2800lpm @ 6.3Bar & 1Bar reduction
Flow Capacity 1/2": 7400lpm @ 6.3Bar & 1Bar reduction
Convenient intelligent modular connecting system
The full range is available in many combinations, get in touch for help or advice.
1/4" or 1/2" entry and exit ports
Max Working Pressure: 188psi 13Bar
Regulation Range: 0-174 psi 0-12Bar
Max Working Temp: 50ºc @ 13Bar
Flow Capacity 1/4": 2800lpm @ 6.3Bar & 1Bar reduction
Flow Capacity 1/2": 7400lpm @ 6.3Bar & 1Bar reduction
Convenient intelligent modular connecting system
The full range is available in many combinations, get in touch for help or advice.
