Spray Booth Filters
Good filters are the perfect way to ensure optimum performance from your spray booth. Available in either recycled paper concertina format or as a glass fibre/synthetic mesh.
The universal industrial spraybooth filter, supplied in 0.9m x 9.14m lengths.
Andreae concertina perforated cardboard paint filters provide lower air flow resistance to maintain high airflow. With a high holding capcity these usually last many times longer than fibreglass filters. Commonly used in spray booths these will capture a wide range of wet particles including any wet solids or liquid particles including high solid paints, oils, stains, glues, fiberglass, lacquers, epoxies, clear coats etc etc.
The Andreae Filter has 2.5" deep holding pockets, giving the Andreae Filter a holding capacity up to 6 times higher than common mesh filters.
Filtration efficiency up to 98,1%
Colour White
Size 0.9m x 9.14m

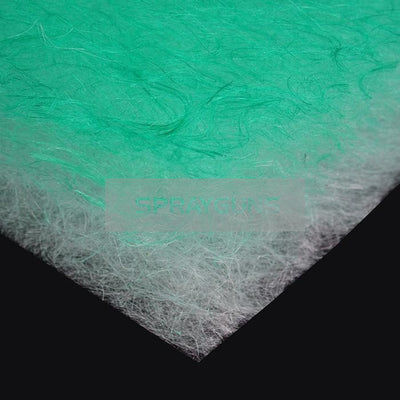

Paintstop extraction filter media is manufactured from a spun fibre weave and is supplied as a 1m x 20m roll. Other sized rolls and pre cut panels are available to order.
As this is an open weave filter the front layer can be peeled away. Can also be used over our PST290 secondary filter.
Colour Green/White
Size 1m x 20m x 50mm
EN779:2012 G2
As this is an open weave filter the front layer can be peeled away. Can also be used over our PST290 secondary filter.
Colour Green/White
Size 1m x 20m x 50mm
EN779:2012 G2
Paintstop extraction filter media is manufactured from a spun fibre weave and is supplied as a 1m x 20m roll. Other sized rolls and pre cut panels are available to order.
As this is an open weave filter the front layer can be peeled away. Can also be used over our PST290 secondary filter.
Colour Green/White
Size 1m x 20m x 100mm
EN779:2012 G2
As this is an open weave filter the front layer can be peeled away. Can also be used over our PST290 secondary filter.
Colour Green/White
Size 1m x 20m x 100mm
EN779:2012 G2
Spray booth glass fibre filter panels make sizing and fitting the filters incredibly easy. With 595 mm x 595 mm x 45 mm sizing applying a panel to a filter is simple and multiple panels can be combined to effortlessly cover a larger area. Comprehensive range of standard and non standard sizes available to order.
Robustly constructed using moisture resistant cardboard frame encasing glass fibre filtration media.
Airflow direction indicator.
Colour Green/White.
Size 595mm x 595mm x 45mm
Robustly constructed using moisture resistant cardboard frame encasing glass fibre filtration media.
Airflow direction indicator.
Colour Green/White.
Size 595mm x 595mm x 45mm
Spray booth pleated filter panels make sizing and fitting the filters incredibly easy. With 595 mm x 595 mm x 45 mm sizing applying a panel to a filter is simple and multiple panels can be combined to effortlessly cover a larger area. Comprehensive range of standard and non standard sizes available to order.
Robustly constructed using moisture resistant cardboard frame encasing fully supported media bonded onto a wire support grid and also bonded into the case to eliminate air by-pass.
Airflow direction indicator.
Colour Green/White.
Size 595mm x 595mm x 45mm
EN 779:2002 efficiency: G4.
Robustly constructed using moisture resistant cardboard frame encasing fully supported media bonded onto a wire support grid and also bonded into the case to eliminate air by-pass.
Airflow direction indicator.
Colour Green/White.
Size 595mm x 595mm x 45mm
EN 779:2002 efficiency: G4.
PST290 extraction filters are manufactured from a dual layer blue and white synthetic media and is supplied as a 1m x 20m roll. Other sized rolls and pre cut panels are available to order.
Often used a secondary level of filtration in a spray booth behind Paintstop media to improve efficiency. PST290 can also be used as an air input filtration media for industrial/commercial appications.
Colour Blue/White
Size 1m x 20m x 18-20mm
EN779:2012 G4
Often used a secondary level of filtration in a spray booth behind Paintstop media to improve efficiency. PST290 can also be used as an air input filtration media for industrial/commercial appications.
Colour Blue/White
Size 1m x 20m x 18-20mm
EN779:2012 G4
TA600 spray booth inlet ceiling filter - Suitable for downdraft spraybooths.
TA600 inlet filters are manufactured from thermal bonded polyester fibre for fine filtration in air conditioning devices and spraybooths, and is supplied as a 1m x 20m roll. Other sized rolls and pre cut panels are available to order.
Features a backing scrim to add support the filter when in place.
Features a special adhesive applied to the polyester fibres to hold on to particales and prevent them falling loose due to vibration. Maximum dust holding mer m² is 290 gram.
Colour White
Size 1m x 20m
EN779:2002 F5
Free delivery not available to all postcodes
TA600 spray booth inlet ceiling filter - Suitable for downdraft spraybooths.
TA600 inlet filters are manufactured from thermal bonded polyester fibre for fine filtration in air conditioning devices and spraybooths, and is supplied as a 2m x 20m roll. Other sized rolls and pre cut panels are available to order.
Features a backing scrim to add support the filter when in place.
Features a special adhesive applied to the polyester fibres to hold on to particales and prevent them falling loose due to vibration. Maximum dust holding mer m² is 290 gram.
Colour White
Size 2m x 20m
EN779:2002 F5
Free delivery not available to all postcodes
