Air Fed Masks
The Airfed system will provide protection against airborne dusts, mists, gases and vapours.
*LAST REMAINING STOCK*
• Floating headband adjustment for maximum comfort
• Comfort sweatband
• Easily adjustable headband ratchet
• Wide vision vizor
• Cartridge type vision cassette
• Replaceable vizor cover
• Low noise air diffuser
• Air filter regulator mounted on pliable bracket that moulds to the body
• Carbon filter
• Adjustable air control regulator
• Audible airflow check
• 1,25 metre hose (inner ø 8 mm) for HVLP spray gun
• Air regulator 1 bar pre-set
• Downward airflow for greater comfort
• Y connection and air hose for the gun (8 mm internal diameter; 1,25 length)

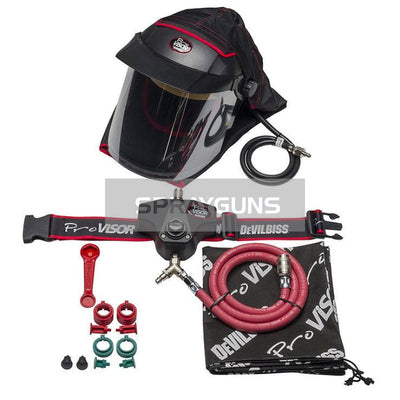

DeVilbiss PROV-650 visor complete air fed mask waist belt.
Complete air fed full face respiratory protection. The gun supply hose swivels both radially and laterally which ensures better spray dynamics without the hose restricting the movement of the sprayer. The Pro Visor disperses breathing air gently and evenly around the lightweight visor with no misting or discomfort. This ensures every sprayer can work in comfort and reassurance.
The wrap around the visor provides excellent and much wider peripheral vision than previous and other air fed masks. The removable peak can help reduce glare from spray booth lighting. A whistle is incorporated to warn the sprayer that an insufficient quantity of breathing air is being supplied to the mask.
Gun supply hose swivels both radially and literally, ensuring better spray dynamics with out hose restricting the movement of the sprayer. Left or right sided waist belt fitment without having to change the air fitting configuration.
The Pro Visor disperses breathing air gently around the lightweight visor at a positive pressure with no misting or discomfort, ensuring every sprayer can work at their best.
The wrap around visor provides excellent and much wider peripheral vision than sprayers will be used to, while the removable peak can help reduce glare from spray booth lighting.
A whistle is incorporated to warn the operator that an insufficient quantity of breathing air is being supplied to the Pro-Visor. Should the whistle sound during use, the operator should vacate the spraying area immediately with the unit still on and check the air supply, i.e. look for crushed or cut supply hose. Each time the Pro-Visor is used the device should be checked in a safe area, to do this the headpiece should be worn as normal and the air supply reduced to approximately 1 bar or less, this will cause the whistle to sound, when the pressure is restored to a safe level the whistle silences.
Technical Specifications
Protection: APF=40 / NPF=200
Carbon filter life: 3 months
Supply pressure: 4.0 bar (60psi) minimum to 7.0 bar (100psi) maximum
Air flow rate: 160 - 220 L/min (5.7 - 7.8 scfm)
Noise level @ 200 L/min: 80 dB (A)
Approvals: PPE directive 89/686/EEC. Conforms to EN 14594:2005 Class 3A
Zone classifications: Suitable for use in Zones 1 and 2 hazardous areas (gas groups llA)
It is essential that all breathing air supplied to an air fed mask must be passed through a 2 or 3 stage filter to remove oil vapour and other impurities from the compressed air.
Easy high wearing comfort.
This full hood is especially designed to meet the requirements of painters and protects the respiratory system, eyes, skin and hair. In addition, it offers a high wearing comfort and optimum hygiene. The hood with hygienic hood insert, replaceable sweatband and acoustic warning device is available as a set. This includes a belt unit, the mask and a hose.
This full hood is especially designed to meet the requirements of painters and protects the respiratory system, eyes, skin and hair. In addition, it offers a high wearing comfort and optimum hygiene. The hood with hygienic hood insert, replaceable sweatband and acoustic warning device is available as a set. This includes a belt unit with activated carbon absorber, the mask and a 1.2m hose.
Product Benefits
- High breathing air quality due to air supply independent of ambient air, no inhalation resistance, high breathing comfort
- High protection level, suitable for long application intervals
- Protects up to 100 times the TRK-value
- Visor allows one-hand operation
- Single solvent resistant tear off visors over an aperture in the front of the mask, ensuring 100% visibility and reduction in light reflections.
- Little operating costs, quick pay-off of purchase costs
More Information
- Max. operating pressure: 8,0 bar
- Min. required air flow volume: 170 Nl/min
- Max. storage temperature: +60 °C
- Min. storage temperature: -20 °C
- Type of air connection: Nipple
- Art. No.: 154591
- Product advantages: High breathing air quality due to air supply independent of ambient air, no inhalation resistance, high breathing comfort

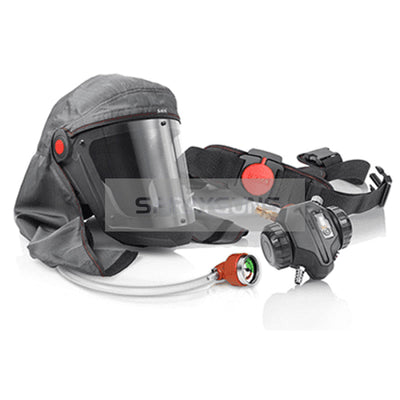

The SATA air vision 5000 offers a completely redesigned way of supplied breathing air. The respiratory hood not only ensures high breathing air quality but also a low noise level.
The new SATA Air vision 5000 puts the focus on effective health protection and lets you experience a whole new and comfortable way of breathing, due to a completely redesigned and patented breathing air supply system. With its modern, ergonomic design, the hood can be adapted to fit almost any head shape, allowing the individual adjustment of its effective circumference, height and position. The compressor must source air from an area that is not contaminated with paint spray.
Comfort
The new, patented method of breathing air distribution inside the hood reduces the air consumption as well as the noise level to 64 dB(A). Working with personal protection equipment becomes exceptionally comfortable. An option is available for a plug-in diffusor that allows an alternative airflow inside the hood. The large, low-reflection visor shield offers a very generous field of vision.
The comfort band cushioning the forehead can be mounted in just a few seconds – and a second one if required, on the rear, keeping the hood hygienically clean and comfortable at all times. During work interruptions, the hood can be conveniently hooked on the foldout support arm integrated into the SATA air regulator, without the need to disconnect it from the belt unit.
Safety
150 NI/min of technically clean compressed air, ensures the slight positive pressure inside the hood, in order to securely prevent overspray and contaminants from penetrating. When the air volume falls below the required minimum threshold, an acoustic warning signal will be activated.
Practical
The modular design allows the adaption and upgrade of the new belt unit according to the job requirements. Users, for instance, have now the choice to mount the air regulation unit either on the right or left of the belt unit.
Individual solutions
The SATA CCS discs (Colour Code System) allow the convenient identification of both your respirator hood and your SATA air regulator, to avoid confusion when several hoods are being used in the shop.
Technical Specifications
- Required operating pressure without spray gun: 2.5 bar – 3,0 bar
- Required operating pressure with spray gun (connected with 1.2 m gun hose): 4.0 bar – 6,0 bar
- Maximum operating pressure: 10.0 bar
- Required minimum air volume flow: 5.3 cfm
- Maximum air volume flow (at 6 bar, air distributor fully opened): 26.1 cfm
Included in box:
- SATA Air Vision Hood
- SATA Air Regulator
- SATA Air Regulator Belt
The SATA air vision 5000 offers a completely redesigned way of supplied breathing air. The respiratory hood not only ensures high breathing air quality but also a low noise level.
The new SATA Air vision 5000 puts the focus on effective health protection and lets you experience a whole new and comfortable way of breathing, due to a completely redesigned and patented breathing air supply system. With its modern, ergonomic design, the hood can be adapted to fit almost any head shape, allowing the individual adjustment of its effective circumference, height and position. The compressor must source air from an area that is not contaminated with paint spray.
Comfort
The new, patented method of breathing air distribution inside the hood reduces the air consumption as well as the noise level to 64 dB(A). Working with personal protection equipment becomes exceptionally comfortable. An option is available for a plug-in diffusor that allows an alternative airflow inside the hood. The large, low-reflection visor shield offers a very generous field of vision.
The comfort band cushioning the forehead can be mounted in just a few seconds – and a second one if required, on the rear, keeping the hood hygienically clean and comfortable at all times. During work interruptions, the hood can be conveniently hooked on the foldout support arm integrated into the SATA air regulator, without the need to disconnect it from the belt unit.
Safety
150 NI/min of technically clean compressed air, ensures the slight positive pressure inside the hood, in order to securely prevent overspray and contaminants from penetrating. When the air volume falls below the required minimum threshold, an acoustic warning signal will be activated.
Practical
The modular design allows the adaption and upgrade of the new belt unit according to the job requirements. Users, for instance, have now the choice to mount the air regulation unit either on the right or left of the belt unit.
Individual solutions
The SATA CCS discs (Colour Code System) allow the convenient identification of both your respirator hood and your SATA air regulator, to avoid confusion when several hoods are being used in the shop.
Technical Specifications
- Required operating pressure without spray gun: 2.5 bar – 3,0 bar
- Required operating pressure with spray gun (connected with 1.2 m gun hose): 4.0 bar – 6,0 bar
- Maximum operating pressure: 10.0 bar
- Required minimum air volume flow: 5.3 cfm
- Maximum air volume flow (at 6 bar, air distributor fully opened): 26.1 cfm
Included in box:
- SATA Air Vision Hood
- SATA Air Regulator
- SATA Air Regulator Belt
