Breathing Filters
Metal Work New Deal compressed air breathing sets.
1/2" entry and exit ports
5µm filter regulator included
Max Working Pressure: 116psi 8Bar @ 50ºc
Convenient modular robust design offering an intelligent modular connecting system
The full range is available in many combinations, get in touch for help or advice
This unit will NOT remove carbon monoxide (CO) & carbon dioxide (CO2).
Breathe provides high quality clean air essential for paint spraying and breathing air applications.

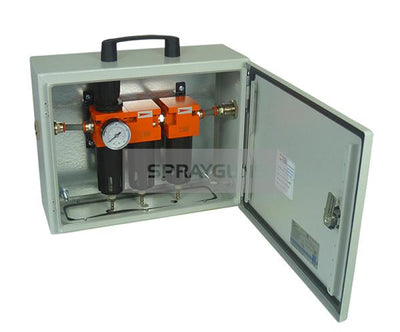

Portable and Secure

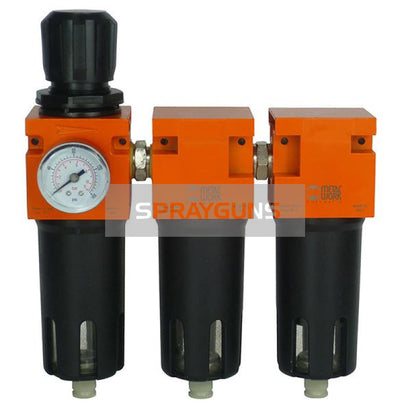

Metal Work 1/2" Breathing Air Set (Breathe 3 Stage)
New Deal model, includes regulator for pressure control

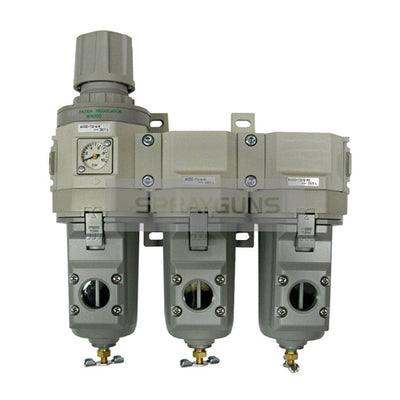

Iwata AIFR100 3 Stage Filter Regulator
The AIFR100 is a high quality 3-stage filter unit providing safe, breathable air for the spraybooth.
60 cfm from the first filter provides enough air to run two spray guns, plus high quality breathable
air for up to two air-fed masks.
The filter removes particles to 0.01 micron, with maximum remaining oil content at 21°C is 0.003mg/m.
Features a robust die cast alloy filter body with glass windows that enable you to see the condition of the filters.
The gauge is built into regulator for safety, which is easily removed for cleaning.
Also includes one-twist quick release bowls for ease of maintenance, and nitrile rubber seals for longer life.
Technical Specifications
- Max operating pressure: 0 – 10 bar
- Max operating temperature: 80°C
- Max inlet flow: 15 bar
- Drain valve, semi automatic
Filter unit for work areas with ambient temperature up to 120°C as, for instance, in spray booths
- Sintered filter/fine filter/activated charcoal, with pressure regulator and outlet module (2x air coupling/nipple 9mm).
- Modular structure of up to 3 filter stages including activated charcoal filter
- Meeting highest requirements for high-grade compressed air (100% technically clean air)
- Air flow: 70.6 cfm at 6 bar
