Anest Iwata Gravity Feed
LPH-80 LUXURY EDITION
The LPH-80 is a Premium Quality Spray Gun for Spot Repair Applications. Specially designed for small repair work and hard-to-reach areas, with an ability to keep repairs small and compact. Suitable for all products including primer, basecoat and clearcoat.
Fine compact atomisation makes working on small repair work a breeze compared to full-size spray guns which produce a wetter and unrefined result. Fan patterns can be made as small as 1cm with a maximum size of 15cm, making the LPH-80 highly versatile.
Stone chips, scuffs, bumper repairs, interior, leather, and wheel repairs are just a few of the tasks the LPH-80 can handle. The LPH-80 has an extremely low air consumption meaning it can run on small compressors, over-spray and material usage are considerably lower than a full-size spray gun the LPH-80 only uses 60 Nl/min. This makes the LPH-80 ideal for mobile repairers and technicians on the go.
Available in nozzle sizes 1.0mm and1.2mm provides an even greater window of application, 1.0mm – 1.2mm nozzle sizes are excellent all-rounders that can handle a great variety of products.
Features:
- Designed for spot and smart repair.
- Optimised fan pattern easily wets up panels and lays clearcoat perfectly.
- Atomisation is best in class giving even droplet distribution and uniform size.
- Consistent fan pattern control and versatility when going from spot to full fan.
- Maximum performance and colour matching result in correct results the first time.
- Highly versatile set-up options for any application or repair work.
What's included:
- Luxury Edition LPH-80
- 70cc black gravity cup
- 250cc black gravity cup
- Maintenance grease
- LPH-80 Spanner
- Cleaning brushes
- 250cc gravity cup adapter
- Airline fitting
- Fine finish polished body
- A smooth polished surface makes it easier to clean
- Ergonomic spray gun design
- New trigger and ergonomic grip shape to relieve stress on painting
- Lightweight & well-balanced body
- Gun head 20-50g lighter than the previous model
- New airflow valve
- Increased control precision
- Improved AKULON cup
- Improved paint cup with multi-thread construction

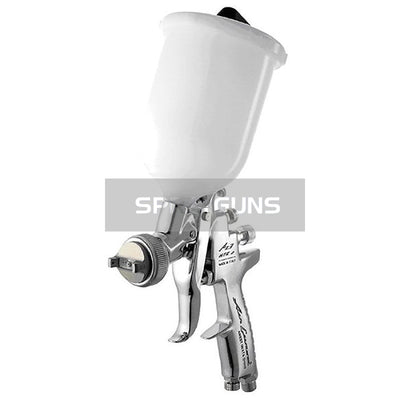

Spare parts compatible with previous Anest Iwata AZ3 HTE
Air Consumption: 7-11 CFM depending on nozzle size.
Fluid Tips Available:
- 1.3mm: Suits all colour coat applications including metallic basecoat both solvent and water.
- 1.5mm: Suits higher build application of non-metallic colours, and can be used for lower build primers. Also white spirit Dulux type wood vanishes.
- 1.8mm: Suits primer application. Also suits emulsion applications.

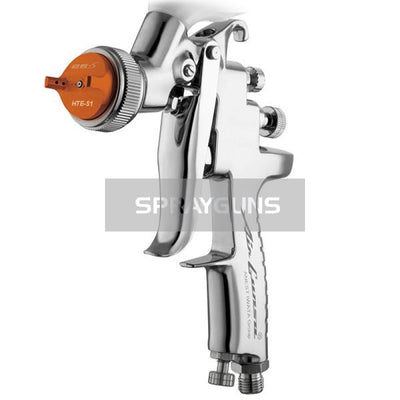

Chrome Flash AZ3 by Anest Iwata - The latest addition to the AZ3 range of gravity spray guns from Anest Iwata, an evolution of the ever popular Green flash model.
This model is ideal for application of both base coats and and clear coats, for both water and solvent paint - one gun for all however best practice still recommends two guns.
The Chrome Flash has been specially designed by Anest Iwata engineers to offer an amazing application for the professional paint sprayer at a low price point.
- New longer fan pattern, best method for the latest coatings
- New high atomization air caps
- All the internal parts are stainless - ideal for water borne and solvent based paints
- Ergonomic gun design - New trigger and ergonomic grip shape to relieve stress on painting
- Light weight & well balanced body - Gun head 20-50 g lighter than previous model
- New air flow valve - Increased control precision
- Improved AKULON cup - Improved paint cup with multi thread construction
A wide range of fluid tip sizes so there is an option to suit every coating.
The Air Gunsa AZ4 HTE-S Impact Junior Spray Gun.
Specifically designed to achieve those small to medium repairs that can be perfectly repaired with high transfer efficiency giving you more control and maximum comfort. Ideal for both water based and solvent based paints with an adjustable inlet valve as standard.
Supplied with a 200ml gravity gun pot
Available in 1.0mm or 1.3mm setups
Air consumption as low as 105 L/min
Supplied with a black aircap
Suitable for the smart / spot repair
Incorporates valve for control of air inlet presure
The LPH80 HVLP center post gravity feed spray gun is ideal for large backgrounds, spot repair, blending, shading and touch-up. Spray patterns ranging from 1.6 inch round pattern to a full 5.5 inch fan pattern. Low operating air pressure and low 1.8 CFM allow the LPH80 to be run with small air compressor, perfect for mobile repair.
Ideal for small repairs (spot repairing)
Compact and lightweight (only 205 grams)
Fine atomization
Twilight chrom plated body
Suitable for solvent and water based paints
PTFE packing
70cc OR 250cc gravity cup
Tested and approved by the major paint producers

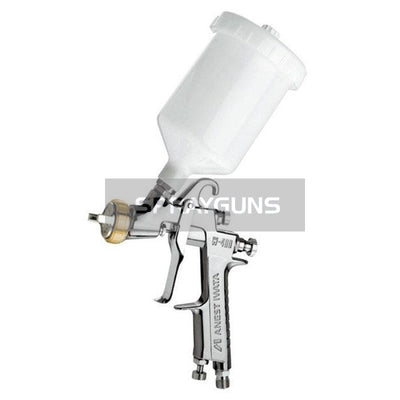

W400 High TEC spray gun, complete with 600ml pot.
A popular and reliable gravity feed spray gun with high transfer efficiency control and superior atomization.
Less overspray means less wastage
Fine atomisation spray pattern
Better paint coverage - faster operation
Light weight ergonomic design - Gun head weighsonly 380g
Suitable for both solvent and some waterborne coatings
Easy to clean chrome body
Ideal for medium to large paint jobs in the auto refinish industry
1.3mm is ideal for automotive clear and direct gloss finishing, 1.4mm as the 1.3mm with faster application. The 1.6mm model is good for light industry applications.

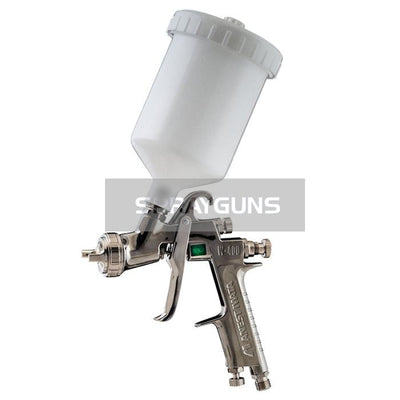

A popular and reliable gravity feed spray gun with high transfer efficiency control and superior atomization.
Less overspray means less wastage
Fine atomisation spray pattern
Improved LV2 air cap with two unique new air caps with Flat & Thin application technology.
Only 250/270 l/min air consumption, giving the sprayer an excellent control of the fluid build.
Stable, large and compact pattern shape.
Perfect for HS Clear Coat.
Easy to clean chrome body
1.3mm is ideal for automotive clear and direct gloss finishing, 1.4mm as 1.3mm with faster application.

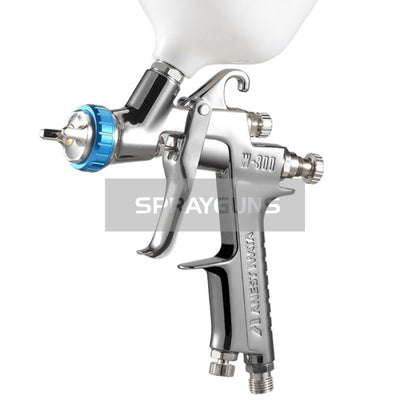

Iwata W300 WB smart repair spray gun. Specially designed for the atomising of water based coatings and this spray gun can also allow a very fine atomisation of solvent based paints.
- Split nozzle atomisation technology
- Specifically designed for blending
- Barely visible transitions due to soft and fine spray
- Very fine atomisation with low air consumption 190l/min
- Extremely low material consumption
- One of the most light weight smart repair spray guns available at only 320g
- Simple operation of the control knobs for left and right handers
- Conical seal nozzle, minimum wear parts
- Quality exterior surface for easy cleaning and maintenance
90th Anniversary special edition, with unique engravings.
The atomizing air flow cuts the paint stream like a knife and controls the droplets efficiently. Working at a lower pressure enables lower air consumption through the flat tip nozzle system.
- Perfect surfaces by Split Nozzle Technology at its best
- VOC-compliant professional spray gun, significantly more than 65% transfer efficiency
- Very fine atomization
- Clearly visible reduction of fat edges
- Characteristically for ANEST IWATA: quiet and pleasant background noise
- With 380g one of the most lightweight guns on the market
- Conical seal nozzle, minimum wear parts
- Quality surface for an easy cleaning
- Clearer design, easy maintenance
- Compatible with the 3M PPS Cup system
Iwata W300 WB smart repair spray gun. Specially designed for the atomising of water based coatings and this spray gun can also allow a very fine atomisation of solvent based paints.
- Split nozzle atomisation technology
- Specifically designed for blending
- Barely visible transitions due to soft and fine spray
- Very fine atomisation with low air consumption 190l/min
- Extremely low material consumption
- One of the most light weight smart repair spray guns available at only 320g
- Simple operation of the control knobs for left and right handers
- Conical seal nozzle, minimum wear parts
- Quality exterior surface for easy cleaning and maintenance
Performance: The Supernova delivers a consistent droplet size when atomising. This combined with the flat even Supernova pattern helps reduce common application issues. All Supernova gun are equipped with stainless steel fluid passages ideal for any type of material, solvent borne or waterborne.
Perfect Balance: The Supernova cup angle design guarantees perfect balance regardless of what cup size you choose.
Quick Release Air-Cap: The larger thread pattern of the air-cap make it both robust and easy to remove and is designed with low maintenance in mind. The new larger grip points on the outside of the air cap ring facilitate quick removal and refitting after cleaning.
Responsive Trigger: The responsive trigger action gives the painter stable air flow control during application. Accurate air pressure can now be set with either the air stroke or the fluid stroke.
Ergonomic Grip: An in-depth study by the University of Pavia into perfect balance and optimal ergonomics was closely considered by Pininfarina designers and Anest Iwata engineers to produce this state of the art spray gun. The slim ergonomic grip of the Supernova spray gun helps distribute weight and balance through the wrist, reducing the risk of repetitive strains.
Performance: The Supernova delivers a consistent droplet size when atomising. This combined with the flat even Supernova pattern helps reduce common application issues. All Supernova gun are equipped with stainless steel fluid passages ideal for any type of material, solvent borne or waterborne.
Perfect Balance: The Supernova cup angle design guarantees perfect balance regardless of what cup size you choose.
Quick Release Air-Cap: The larger thread pattern of the air-cap make it both robust and easy to remove and is designed with low maintenance in mind. The new larger grip points on the outside of the air cap ring facilitate quick removal and refitting after cleaning.
Responsive Trigger: The responsive trigger action gives the painter stable air flow control during application. Accurate air pressure can now be set with either the air stroke or the fluid stroke.
Ergonomic Grip: An in-depth study by the University of Pavia into perfect balance and optimal ergonomics was closely considered by Pininfarina designers and Anest Iwata engineers to produce this state of the art spray gun. The slim ergonomic grip of the Supernova spray gun helps distribute weight and balance through the wrist, reducing the risk of repetitive strains.
